Texas Crenshaw

Brick & Brick Tile Texas Crenshaw (TX)(Texas Crenshaw)

Recommended Joint Width and Estimated Usage

  • Joint Width12mm
  • Exterior Wall
  • Interior Wall
  • Interior Floor ×
  • Exterior Floor ×
  • Slip Resistance -
  • Frost Resistance

CAN'BRICK

CAN’BRICK “Texas Crenshaw (TX)” is a brick tile that combines the grandeur of the American landscape with a refined sensibility. Its design evokes stability and unhurried living, expressing both nostalgia and strength.

レンガタイル(ブリックタイル)『テキサスクレンショー TX-1』の色見本

TX-1

CAN'BRICK Texas TX-1 Flat

Joint Color
Cream
Joint Finish
Full Joint
Joint Pattern
American Bond

See all 15 jointing mortar colors here

タイルの形状寸法図 Flat
CFP-TX-1
W: 209~213×H: 62~66mm
15~17mm
54 pcs
0.9㎡
60 pcs/m²
20kg
¥8,600/m² ¥7,740/case
レンガタイルの形状寸法図 Half
CFP-TX-1-H
W:99~103×H:62~66mm
15~17mm
108 pcs
0.9㎡
120 pcs/m²
20kg
¥10,300/m² ¥9,270/case
タイルのコーナー(曲がり)の形状寸法図 Corner
CCP-TX-1
W:101~105, 209~213×H:62~66mm
15~17mm
28 pcs
2m
14 pcs/m
16kg
¥5,900/m ¥421/pc
レンガタイルの形状寸法図 Magusa
CMP-TX-1
W:101~105, 209~213×H:62~66mm
15~17mm
16 pcs
3.2m
5 pcs/m
17kg
¥5,900/m ¥1,180/pc
レンガタイルのボックス(左)の形状寸法図 Box (L)
CBP-TX-1-L
W: 101~105, 209~213×H: 62~66mm
15~17mm
12 pcs
15kg
¥3,700 ¥3,700/pc
レンガタイルのボックス(右)の形状寸法図 Box (R)
CBP-TX-1-R
W: 101~105, 209~213×H: 62~66mm
15~17mm
12 pcs
15kg
¥3,700 ¥3,700/pc

Our works

Case Studies

レンガタイル『テキサスクレンショー』を張ったを使用した洗面室の施工例

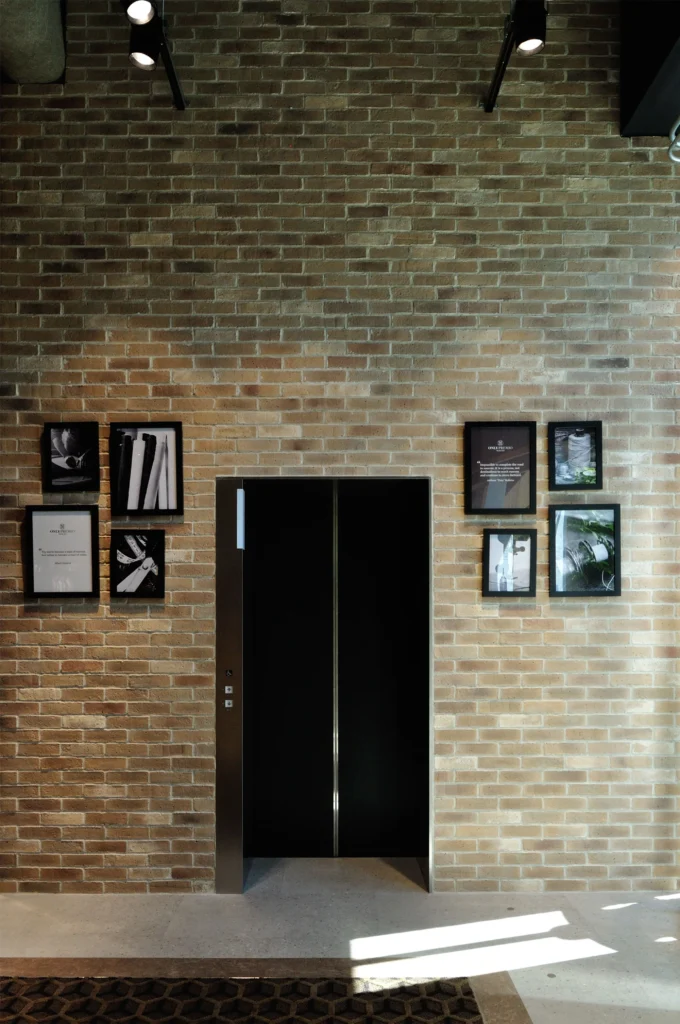

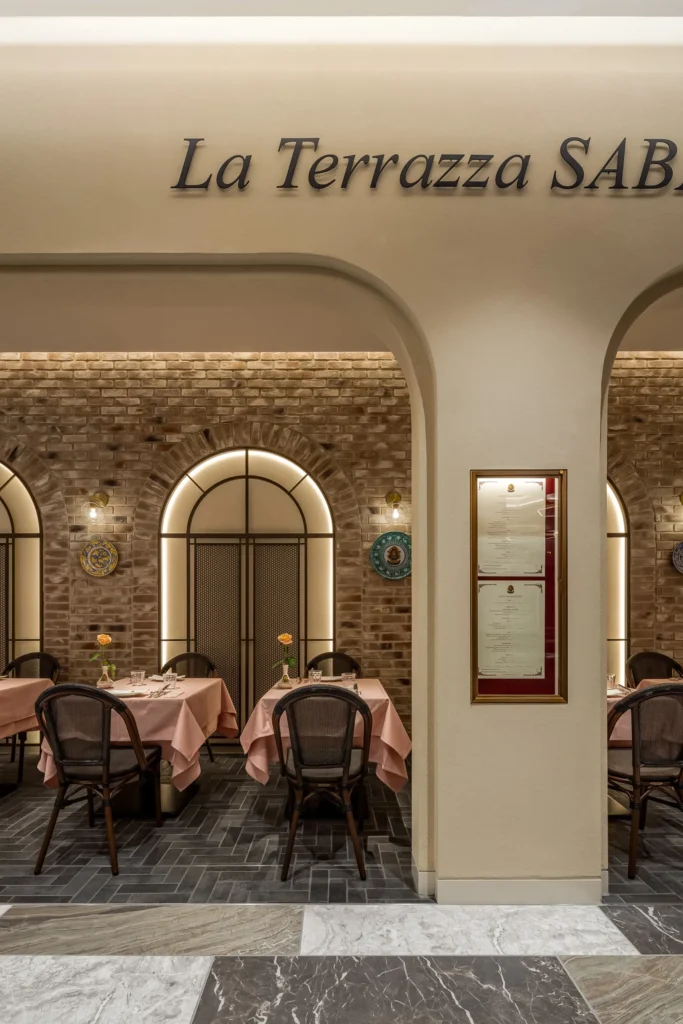

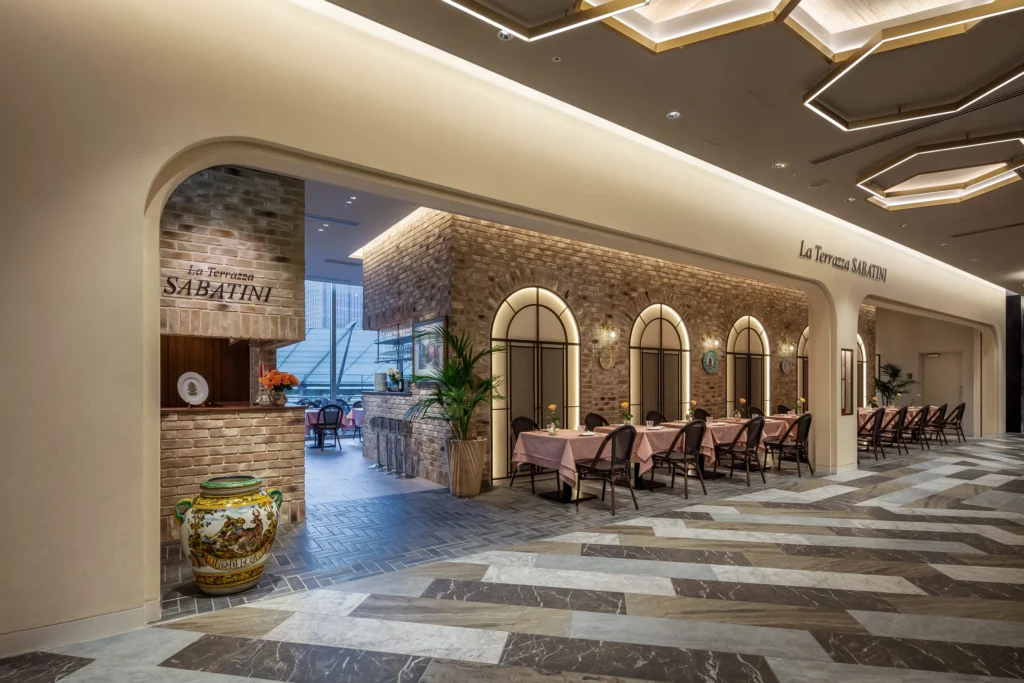

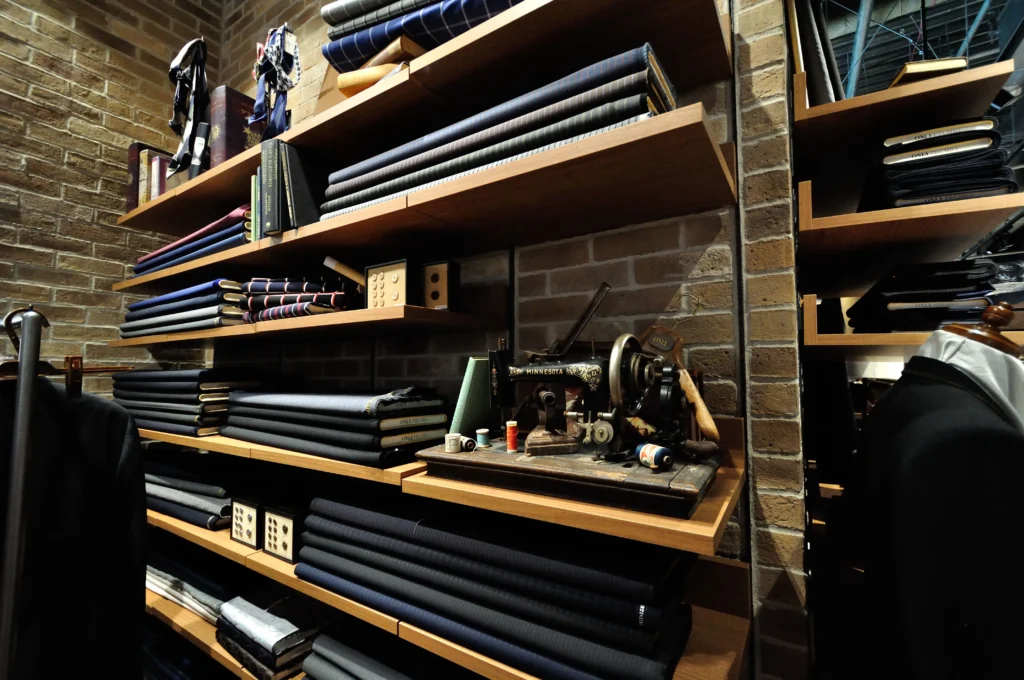

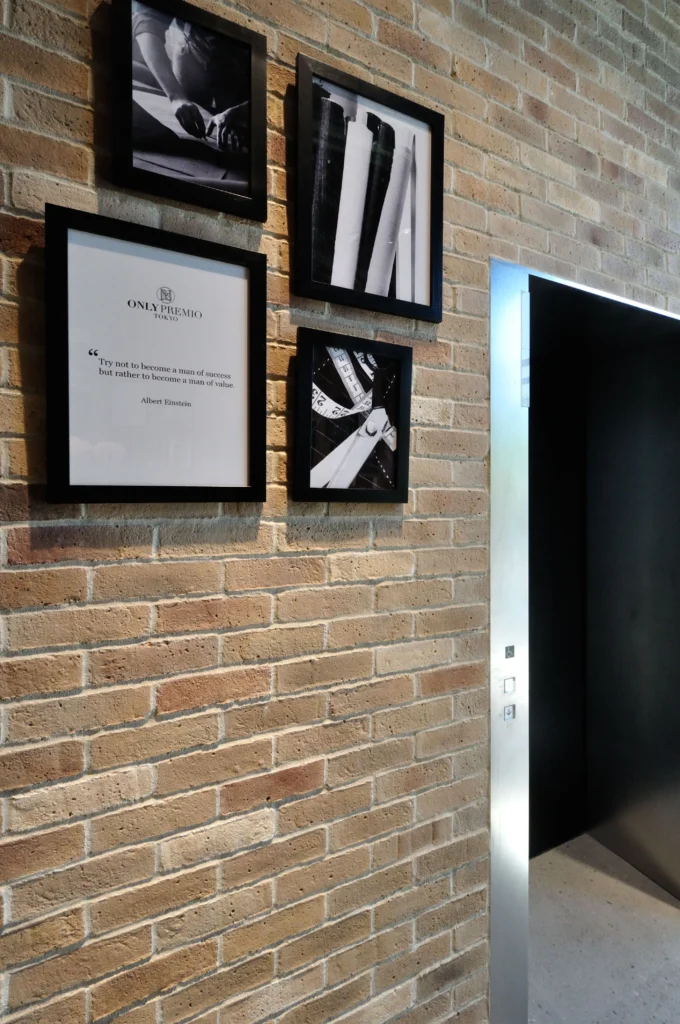

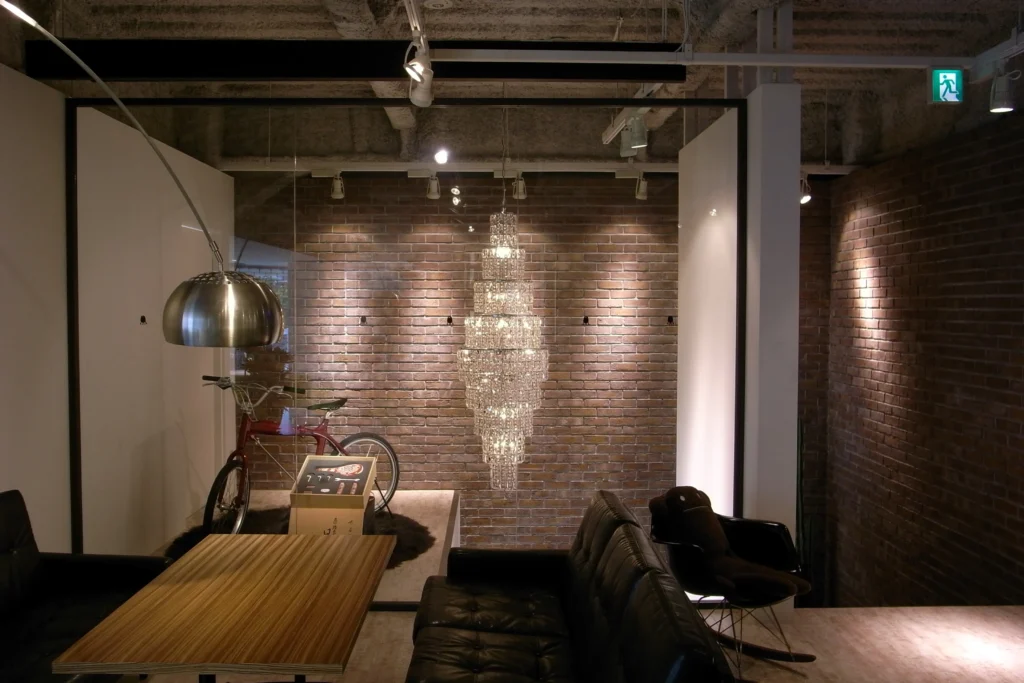

レンガタイル『テキサスクレンショー』を張った内壁の施工例
レンガタイル『テキサスクレンショー』を張った内壁の施工例
レンガタイル『テキサスクレンショー』を張った内壁の施工例

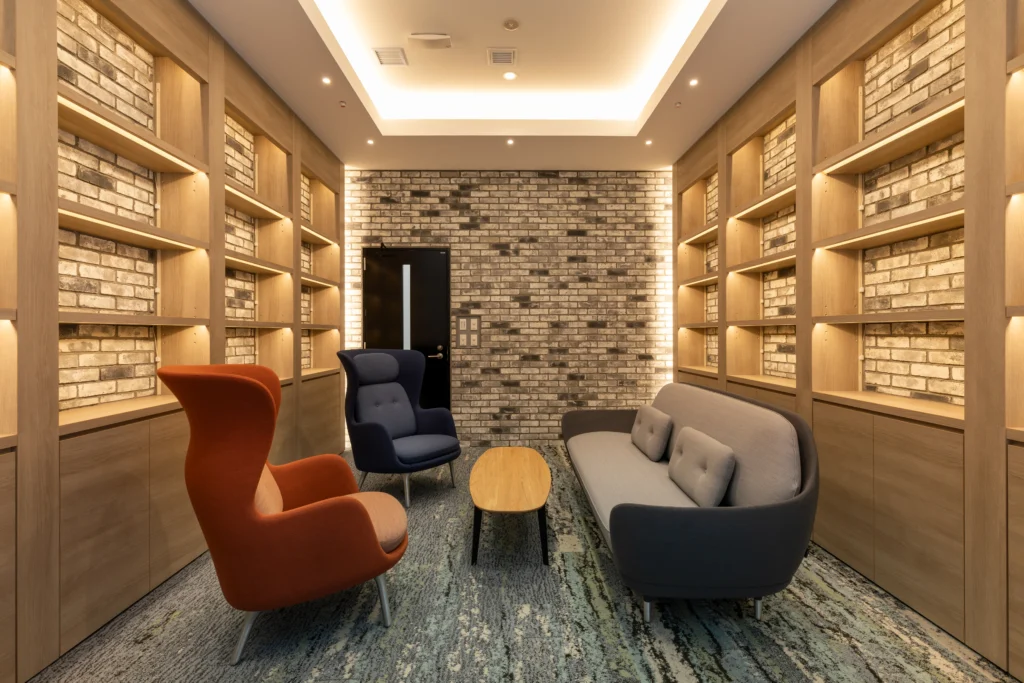

レンガタイル『テキサスクレンショー』を張ったオフィス内壁の施工例
レンガタイル『テキサスクレンショー』を張った内壁の施工例
レンガタイル『テキサスクレンショー』を張った内壁の施工例
レンガタイル『テキサスクレンショー』を張った内壁の施工例

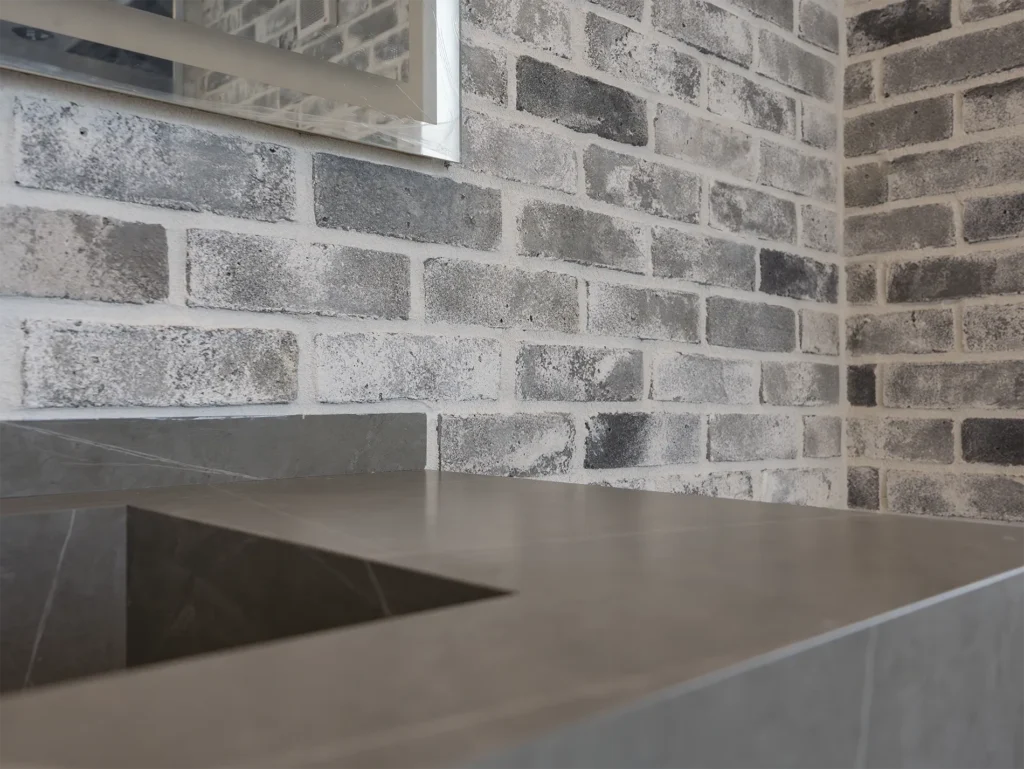

レンガタイル『テキサスクレンショー』を張ったを使用した住宅の施工例

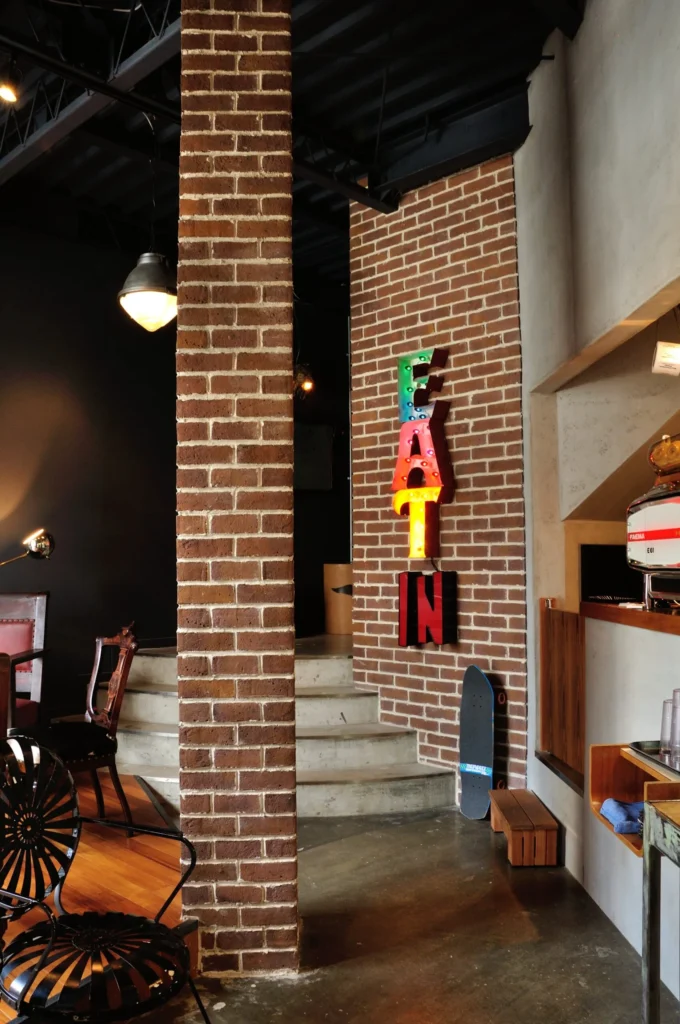

レンガタイル『テキサスクレンショー』を張った商業施設施工事例の施工例

Texture

Texture

CAN’BRICK “Texas Crenshaw” is a brick tile that reproduces the texture of real brick made by knife-cut forming.

Knife-cut forming is a process in which extruded clay is sliced to shape with a steel blade. Brick formed this way takes on a distinctive dragged look along its lower edge, where the clay creases.

This product faithfully reproduces that delicate creasing and soft texture.

The forming process

The creasing it produces

Calculator

Material Estimator (Quantity, Jointing Mortar, Adhesive)

Enter the installation area (m²) and choose a bond pattern, and the tool calculates the number of cases of flat and half pieces you need (with item numbers), along with estimated quantities of MT-MEJI jointing mortar and MT-BOND / MT-BOND-FLEX adhesive.

Select Color

* Rough estimates based on a 10mm joint width. Actual usage varies with installation conditions.

Precaution

Important Notes

・A joint width for CAN’BRICK “Texas Crenshaw (TX)” of about 12mm is recommended.


・CAN’BRICK “Texas Crenshaw (TX)” has deliberately uneven dimensions and color variation, which produces a more antique finish.


・On exterior walls, always fill the joints to at least 2/3 of the brick thickness. Without enough jointing mortar, water reaches the back of the brick and causes delamination.


・On exterior walls we recommend “Repel S” penetrating water repellent to prevent staining, deterioration, and efflorescence.


・To bring out the full range of color and texture, mix pieces from several cartons as you install.


About precast concrete products


・The quantities required per m2 and per m include the joints.

FAQ

FAQ

Q1. Can CAN'BRICK be used on exterior walls?

Yes, it can be used on exterior walls.

To keep it looking its best, we recommend using it together with our ancillary material “Repel S” (penetrating water repellent).

Q2. Is CAN'BRICK an imported product?

No. It is made in Japan.

Our craftsmen make each piece by hand at our own factory in Japan, so we can still supply matching material if repairs are needed in the future.

Q3. I have heard that precast concrete brick tiles such as CAN'BRICK are weaker than porcelain tiles. Is that true?

It is true that the strength is lower than porcelain tile. In recent years, however, installation with flexible adhesive has become standard practice, which compensates for this weakness, and cracking has decreased significantly.

If a crack does occur, our ancillary material “BRICK+AID” makes the repair simple.

Q4. Since CAN'BRICK is a cement product, is the cut edge cement gray?

No. Pigment is mixed into the mortar, so the cut edge is the same color as the face.

When cutting on site, we recommend scoring a line and splitting the piece with a chisel and hammer. If the cut edge bothers you, use “BRICK+AID”, a repair compound made for brick tile.

Q5. Is there a risk that the product will be discontinued?

No. Even if a product is discontinued for reasons on our side, we can produce it again at our own factory.

You can specify it with confidence, knowing that material will be available if repairs become necessary.

Q6. Is CAN'BRICK non-combustible? Please tell us the certification number.

CAN'BRICK is a non-combustible material.

Under the Building Standards Act, non-combustible materials fall into the following 2 types:

  1. “Designated”: materials designated as non-combustible by the Minister of Land, Infrastructure, Transport and Tourism

  2. “Certified”: materials granted individual certification by the Minister

The mortar and concrete that CAN'BRICK is made from are classified as “designated” non-combustible materials. The certification number we are often asked about is issued only for “certified” materials.

Both qualify as non-combustible materials under the Building Standards Act and can be used in the same way.

Q7. Can it be used around wood stoves and fireplaces?

Yes, wherever the surface temperature stays at or below 200℃. Ordinary resin-based adhesives lose bond strength at these temperatures, so a mortar-based adhesive is required. Our guide “Can brick tile be used on wood stove and fireplace walls? Heat resistance and installation guide” compares the heat resistance of different adhesives and explains what to watch for during installation.
